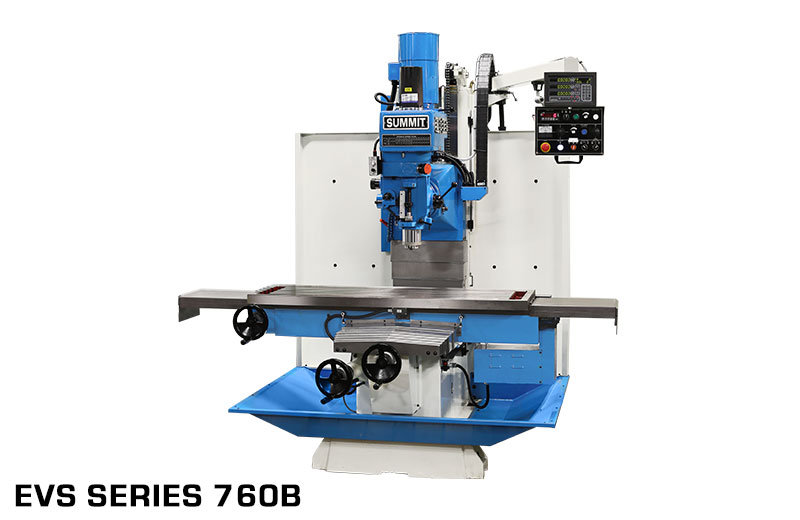

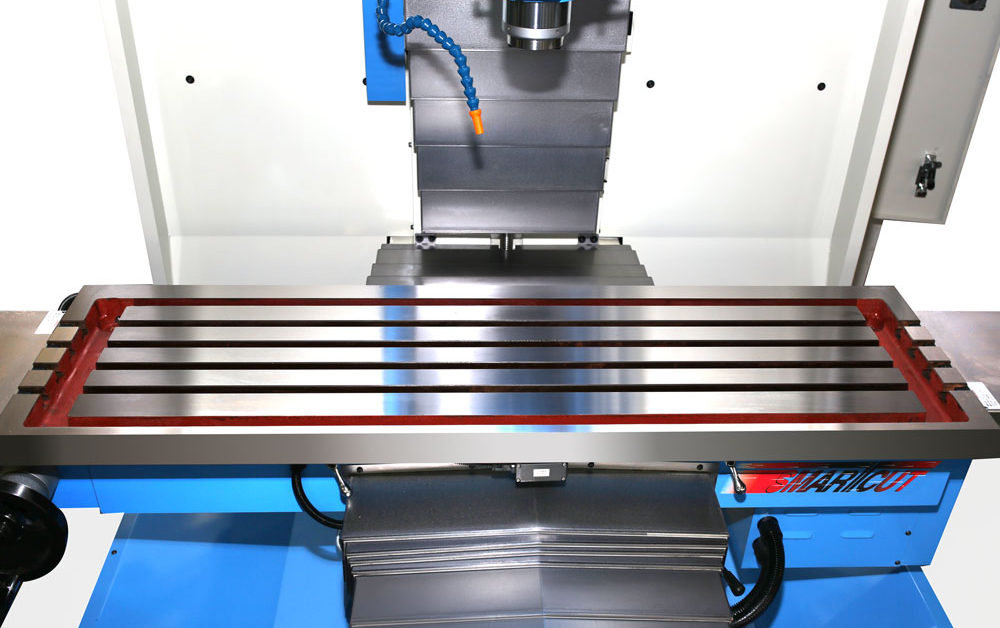

EVS Series 760B Vertical Bed Mills
Table Size: 16.9″ x 60″ x 3 1/8″, 7.5 HP
Description
The rugged Summit® EVS Series Vertical Bed Mills are engineered and manufactured from the finest components with the operator in mind. The newly designed control is centralized for ease of operation, has a larger display, and a power tapping mode. Movement of the head to various angles is easily obtained from the operator’s position. The Summit EVS Series Vertical Bed Mills are versatile enough to effectively serve small one-man machine shops, job shops, R&D departments, tool rooms and maintenance shops, as well as large, sophisticated manufacturing operations.
Standard Features
- Heavy “Meehanite” cast iron construction for excellent damping
- Heavy box saddle
- Huge box ways on column
- “Turcite-B” inserted guideways for extended machine life
- Double table locks
- Wipers on saddle and column
- Head swivels left & right
- Built-in coolant system
- Automatic lubrication
- Precision ground ball screws with double-nut design
- Inverter duty, high-energy – high-efficiency motors for lower utility costs, save up to 35%
- Compact AC inverter spindle drive
- AC servos & drives
- Fewer moving parts in the head for less maintenance and downtime
- Power cogged drive belt to prevent belt slippage and extend tool life
- Electronic inverter-controlled braking for reduced set-up time
- Fan cooled electrical enclosure

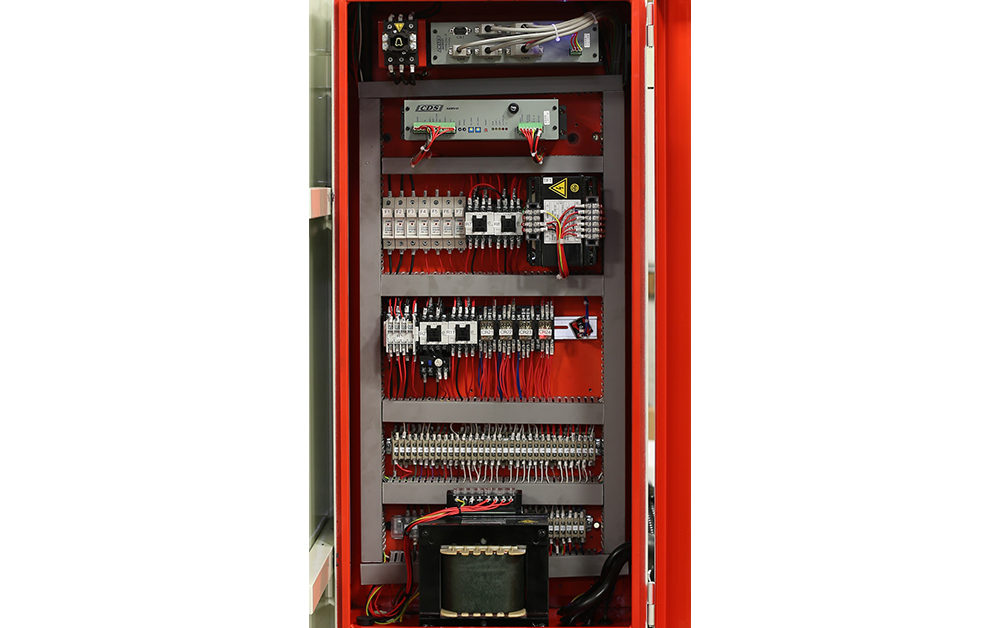

- Complete electrics with low voltage controls for safer machine operation
Included Accessories
- Oil gun
- Clamping kit
- Anchor bolts
- Open end wrench set
- Steel way covers
- Halogen work light
- Air-operated power draw bar
| Specifications: | EVS-760B VBM |
| Table | |
|---|---|
| Table size (WxLxH) | 16.9″ x 60″ x 3 1/8″ |
| Maximum weight of workpiece | 2200 lbs. |
| Table longitudinal travel (X) | 51.1″ |
| Saddle cross travel (Y) | 23.62″ |
| Vertical head travel (Z) | 23.6″ |
| Vertical Spindle Head | |
| Motor size | 7.5 HP |
| Spindle speeds – number | Infnitely variable |
| Spindle speeds – range (RPM) | 0 – 3650 |
| Spindle taper | #40 |
| Quill traverse | 5.5″ |
| Miscellaneous | |
| Weight | 6,500 lbs. |
| Specifications: | EVS-760B VBM |
| Motor size | 7.5 HP |
| Spindle speeds – number | Inf. variable |
| Spindle speeds – range (RPM) | 0-3650 |
| Spindle taper | #40 |
| Spindle travel | 5.5″ |
| Spindle feed range | Inf. Variable |
| Head movement side to side | +/- 90° |
| Head movement front to back | N/A |
| Table size (WxLxH) | 16.9″x60″x3 1/8″ |
| Table feed (longitudinal) | 51.1″ |
| Table feed (cross) | 23.62″ |
| Maximum weight of workpiece | 2200 lbs. |
| Rotation of overarm | 360° |
| Overarm adjustment | 24″ |
| Spindle nose to table | 2.5″ – 30″ |
| Weight | 6,500 lbs. |
