The rugged Summit® EVS Series Vertical Mills are engineered and manufactured from the finest components with the operator in mind. The newly designed control is centralized for ease of operation, has a larger display, and a power tapping mode. Movement of the head to various angles is easily obtained from the operator’s position. The Summit EVS Series Vertical Mills are versatile enough to effectively serve small one-man machine shops, job shops, R&D departments, tool rooms and maintenance shops, as well as large, sophisticated manufacturing operations.
Standard Features
- Inverter duty, high-energy – high-efficiency motors for lower utility costs, save up to 35%
- Fewer moving parts in the head for less maintenance and down time
- Cogged drive belt to prevent belt slippage and extend tool life
- Centrally located controls for ease of operation
- Immediate response speed control (0-full speed in 4 sec.)
- Full range RPM selection. Tweak up or down to prevent chatter and prolong tool life
- Electronic inverter controlled braking for reduced set-up time

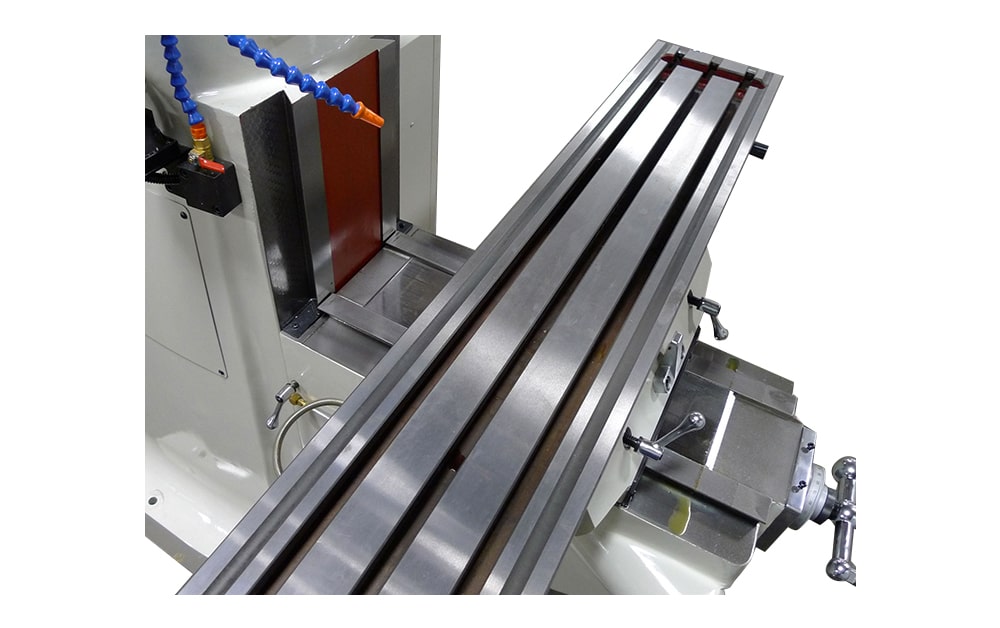

- Turcite-B” inserted guideways for extended machine life
- Complete electrics with low voltage controls for safer machine operation

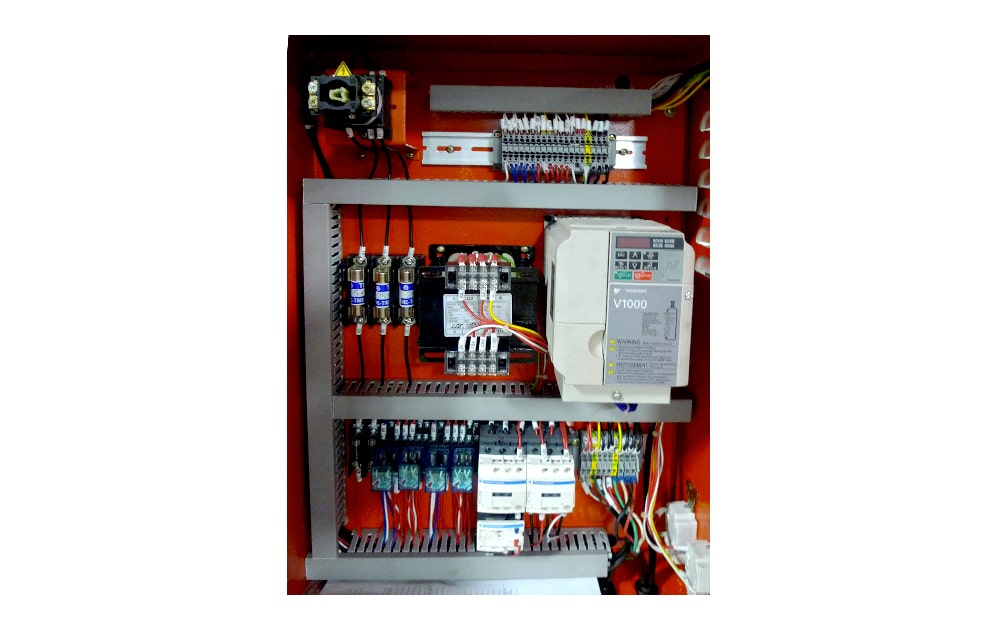

- Yaskawa compact AC inverter drive
- Fan cooled electrical enclosure
- Heavy “Meehanite” cast iron construction for excellent damping
- 3HP – 40 Taper – Horizontal Spindle (EVS-560B)
- Huge box ways on knee (EVS-354B & EVS-550)
- Power raise on knee (EVS 550B)
- Power draw bar (EVS 550B)
- One shot lubrication
- R-8 collet set (EVS-349B & EVS-354B)
- Draw bar
- Way covers
- Operation & parts manual
Included Accessories
- Built-in coolant system
- Halogen work light
- Clamping kit
- Service wrenches & tool box

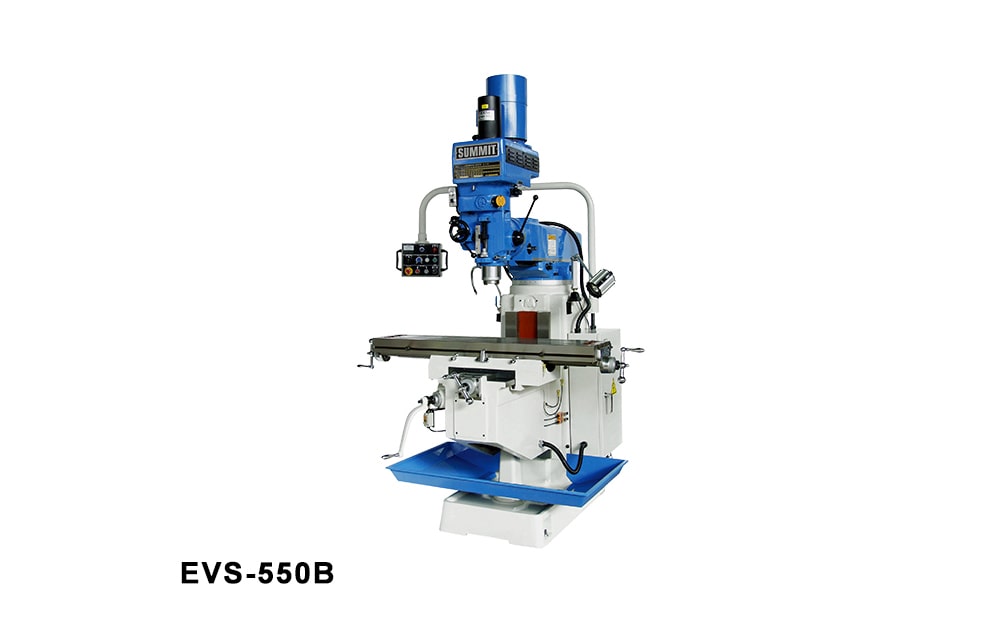

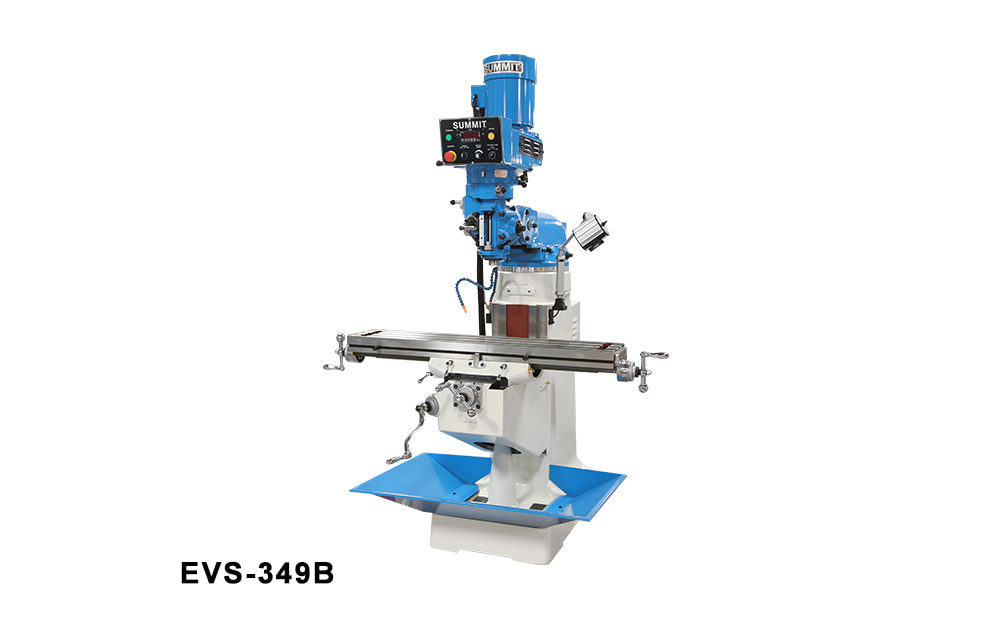

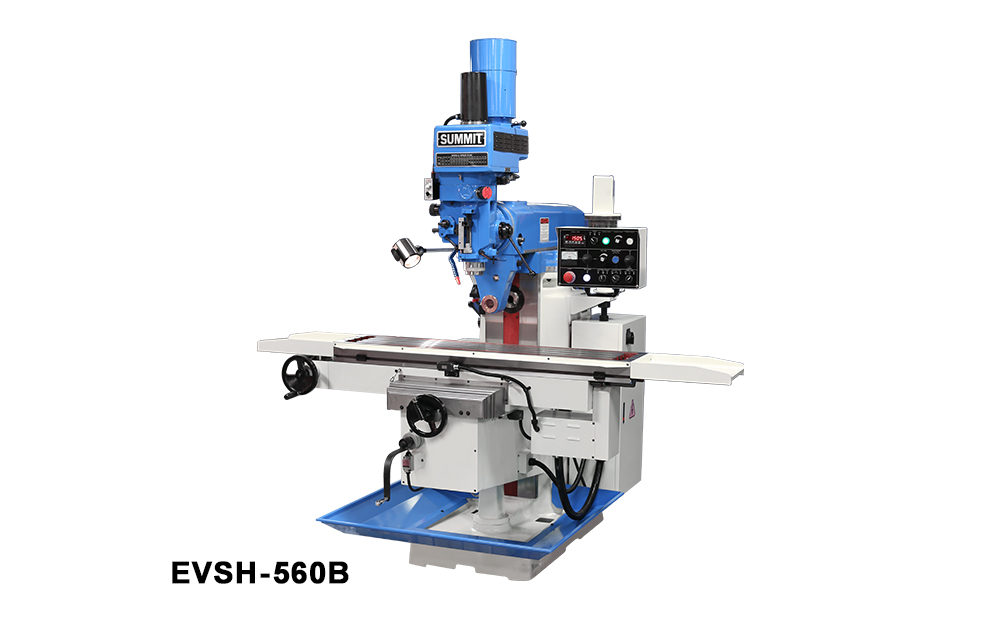

| Specifications: | EVS-349B | EVS-354B | EVS-550B | EVSH-560B |
| Motor size (2 speeds) | 3 HP | 3 HP | 5 HP | 5 HP |
| Spindle speeds – number | Inf. variable | Inf. variable | Inf. variable | Inf. variable |
| Spindle speeds – range (RPM) | 0-4300 | 0-4300 | 0-3650 | 0-4000 |
| Spindle taper | R-8 | R-8 | #40 | #40 |
| Spindle travel | 5″ | 5″ | 5.5″ | 5.5″ |
| Spindle feed range | .0015/.003/.006 IPR | .0015/.003/.006 IPR | .0015/.003/.006 IPR | .0015/.003/.006 IPR |
| Head movement side to side | +/- 90° | +/- 90° | +/- 90° | N/A |
| Head movement front to back | +/- 45° | +/- 45° | N/A | N/A |
| Table size (WxLxH) | 9″ x 49″ x 3-1/8″ | 10″ x 54″ x 3-1/8″ | 11″ x 52″ x 3-1/8″ | 12″ x 60″ x 3 1/8″ |
| Table feed (longitudinal) | 31″ | 40″ | 32 1/2″ | 47.2″ |
| Table feed (cross) | 13″ | 16″ | 16″ | 18.9″ |
| Maximum weight of workpiece | 850 lbs. | 850 lbs. | 1025 lbs. | 1200 lbs. |
| Rotation of overarm | 360° | 360° | 360° | 360° |
| Overarm adjustment | 15″ | 22″ | 24″ | 24″ |
| Spindle nose to table | 0″ – 17 1/2″ | 2-1/2″ – 17 1/2″ | 2″ – 22″ | 5.1″ – 22.6″ |
| Weight | 2,200 lbs. | 2,900 lbs. | 3,740 lbs. | 5,720 lbs. |
| Specifications: | EVS-349B |
| Motor size (2 speeds) | 3 HP |
| Spindle speeds – number | Inf. variable |
| Spindle speeds – range (RPM) | 0-4300 |
| Spindle taper | R-8 |
| Spindle travel | 5″ |
| Spindle feed range | .0015/.003/.006 ipr |
| Head movement side to side | +/- 90° |
| Head movement front to back | +/- 45° |
| Table size (WxLxH) | 9″x49″x3-1/8″ |
| Table feed (longitudinal) | 31″ |
| Table feed (cross) | 13″ |
| Maximum weight of work piece | 850 lbs. |
| Rotation of over arm | 360° |
| Over arm adjustment | 15″ |
| Spindle nose to table | 0″ – 17 1/2″ |
| Weight | 2,200 lbs. |
| Specifications: | EVS-354B |
| Motor size (2 speeds) | 3 HP |
| Spindle speeds – number | Inf. variable |
| Spindle speeds – range (RPM) | 0-4300 |
| Spindle taper | R-8 |
| Spindle travel | 5″ |
| Spindle feed range | .0015/.003/.006 ipr |
| Head movement side to side | +/- 90° |
| Head movement front to back | +/- 45° |
| Table size (WxLxH) | 10″x54″x3-1/8″ |
| Table feed (longitudinal) | 40″ |
| Table feed (cross) | 16″ |
| Maximum weight of work piece | 850 lbs. |
| Rotation of over arm | 360° |
| Over arm adjustment | 22″ |
| Spindle nose to table | 2-1/2″ – 17 1/2″ |
| Weight | 2,900 lbs. |
| Specifications: | EVSH-550B |
| Motor size (2 speeds) | 5 HP |
| Spindle speeds – number | Inf. variable |
| Spindle speeds – range (RPM) | 0-3650 |
| Spindle taper | #40 |
| Spindle travel | 5.5″ |
| Spindle feed range | .0015/.003/.006 ipr |
| Head movement side to side | +/- 90° |
| Head movement front to back | N/A |
| Table size (WxLxH) | 11″x52″x3-1/8″ |
| Table feed (longitudinal) | 32 1/2″ |
| Table feed (cross) | 16″ |
| Maximum weight of work piece | 850 lbs. |
| Rotation of over arm | 360° |
| Over arm adjustment | 24″ |
| Spindle nose to table | 2″ – 22″ |
| Weight | 3,740 lbs. |
